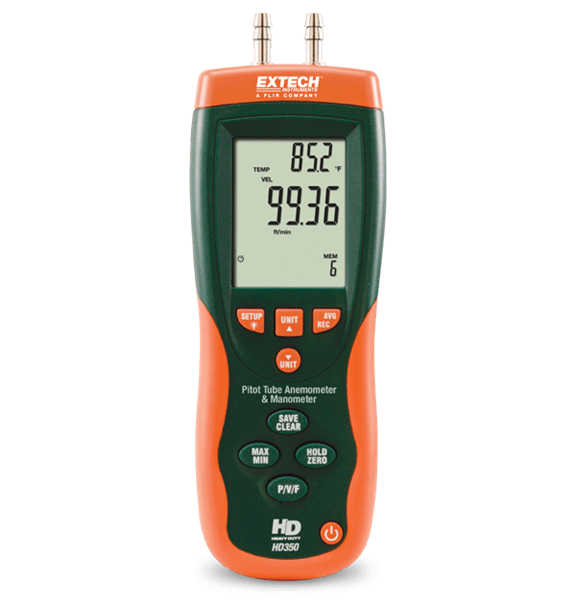

EXTECH HD350 Pitot Tube + Anemometer Diff Manometer

EXTECH HD350
Extech HD350 PITOT TUBE + ANEMOMETER DIFF MANOMETER

HD350
List Price: $504.25
Our Price: $350.18
You save $154.07!
Manufacturer: EXTECH


Product Code: WAL3-HD350
Qty:

Description Spec Sheets

The EXTECH HD350 is a Pitot tube anemometer and differential manometer. Measures Differential pressure in 5 selectable units of measure and includes a Pitot tube and 2 connection hoses for measuring Air Velocity/Air Flow. Additional features include data hold, auto power off, zero function, plus manually record/recall up to 99 readings. Built-in USB port. Complete with software and USB cable, 9V battery, pitot tube with two 33.5 in. (85 cm) connection hoses and hard carrying case from Wallco Inc.

GENERAL SPECIFICATIONS
  • Air Velocity (ft/min) - 200 to 15733ft/min
  • Air Velocity (ft/min) Basic Accuracy - ±1% full scale
  • Air Velocity (ft/min) Max Resolution - 1ft/min
  • Air Velocity (km/h) - 3.5 to 288.0km/h
  • Air Velocity (km/h) Basic Accuracy - ±1% full scale
  • Air Velocity (km/h) Max Resolution - 0.1km/h
  • Air Velocity (knots) - 2.0 to 154.6knots
  • Air Velocity (knots) Basic Accuracy - ±1% full scale
  • Air Velocity (knots) Max Resolution - 0.1knots
  • Air Velocity (m/s) - 1 to 80.00m/s
  • Air Velocity (m/s) Basic Accuracy - ±1% full scale
  • Air Velocity (m/s) Max Resolution - 0.01m/s
  • Air Velocity (mph) - 2.25 to 178.66mph
  • Air Velocity (mph) Basic Accuracy - ±1% full scale
  • Air Velocity (mph) Max Resolution - 0.01mph
  • Air Volume (CFM) - 0 to 99,999
  • Air Volume (CFM) Basic Accuracy - ±3% of reading
  • Air Volume (CFM) Max Resolution - 0.001
  • Air Volume (CMM) - 0 to 99,999
  • Air Volume (CMM) Basic Accuracy - ±3% of reading
  • Air Volume (CMM) Max Resolution - 0.001
  • Linearity/Hysteresis - ±0.29 full scale
  • Max Pressure - 10psi
  • Pressure (inH?O) - 20.07inH₂O
  • Pressure (inH?O) Basic Accuracy - ±0.3% full scale
  • Pressure (inH?O) Max Resolution - 0.01inH₂O
  • Pressure (mbar) - 50.00mbar
  • Pressure (mbar) Basic Accuracy - ±0.3% full scale
  • Pressure (mbar) Max Resolution - 0.01mbar
  • Pressure (mmH?O) - 509.8mmH₂O
  • Pressure (mmH?O) Basic Accuracy - ±0.3% full scale
  • Pressure (mmH?O) Max Resolution - 0.01mmH₂O
  • Pressure (Pa) - 5000Pa
  • Pressure (Pa) Basic Accuracy - ±0.3% full scale
  • Pressure (Pa) Max Resolution - 1Pa
  • Pressure (psi) - 0.7252psi
  • Pressure (psi) Basic Accuracy - ±0.3% full scale
  • Pressure (psi) Max Resolution - 0.0001psi
  • Temperature (Air) - 32.0 to 122.0°F (0 to 50°C)
  • Temperature (Air) Basic Accuracy - ±3°F/1.5°C
  • Temperature (Air) Max Resolution - 0.1°
ADDITIONAL DETAILS
  • Certifications - CE
  • Dimensions - 8.2 × 2.9 × 1.9" (210 × 75 × 50mm)
  • Power - 1 × 9V battery
  • Warranty - 3 years
  • Weight - 12oz (340g); 7.2oz (204g)
