Sola 63-23-612-8 120VA MCR HW REGULATOR 50HZ

63-23-612-8 - Image 1 of 0
63-23-612-8 - Image 2 of 0
63-23-612-8 - Image 1 of 0
63-23-612-8 - Image 2 of 0
63-23-612-8 - Image 1 of 0
63-23-612-8 - Image 2 of 0

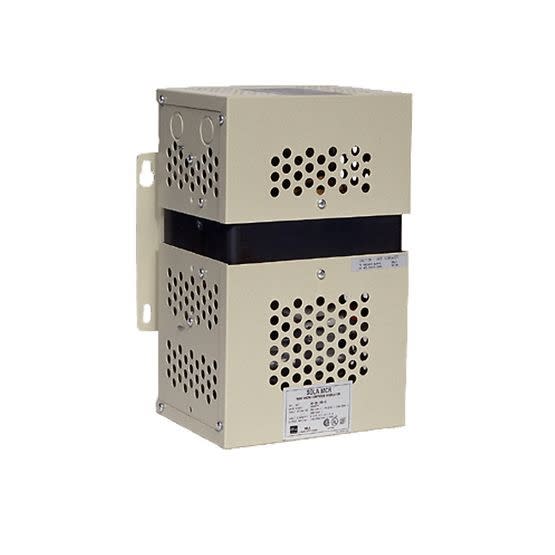

SolaHD 63-23-612-8 120VA MCR HW REGULATOR 50HZ

SolaHD
1 Reviews
List Price: $1,111.10
$
63-23-612-8
  • Manufacturer:: SolaHD
Product Code: 63-23-612-8
UPC Code: 78347256198
MCR Hardwired Series – Power Line Conditioning with Voltage Regulation

The SolaHD MCR Hardwired Series provides excellent noise filtering and surge protection to safeguard connected equipment from damage, degradation or misoperation. Combined with the excellent voltage regulation inherent to our ferroresonant design, the MCR can increase the actual Mean Time Between Failure (MTBF) of protected equipment. The MCR is a perfect choice where dirty power, caused by impulses, swell, sags, brownouts and waveform distortion can lead to costly downtime because of damaged equipment.

Applications
  • Industrial automation and control equipment PLCs
  • Machine tools
  • Computer loads and electronic equipment
  • Robotics
  • Semiconductor fabrication equipment
Features
  • ±3% output voltage regulation
  • Noise attenuation
    • 120 dB common mode
    • 60 dB transverse mode
  • Surge protection tested to ANSI/IEEE
    • C62.41 Class A & B Waveform:
    • <10 V let through typical
  • Acts as a step-up or step-down transformer
  • Harmonic filtering
  • Hardwired
  • Galvanic isolation provides exceptional circuit protection
  • 25 year typical MTBF
  • No maintenance required
Related Products
  • On-line UPS (S4K Industrial)
  • Surge Protection
  • Three Phase Power Conditioners
  • Active Tracking® Filters

Selection Tables: Single Phase
Group 4 – MCR Series, 60 Hz Only
