Home > Manufacturers > Teledyne Flir > FLIR VT8-600 FLIR Voltage, Continuity and Current Tester
	List Price: $187.63 Our Price: $130.30 You save $57.33! Manufacturer: FLIR Product Code: WAL3-VT8-600 Qty:

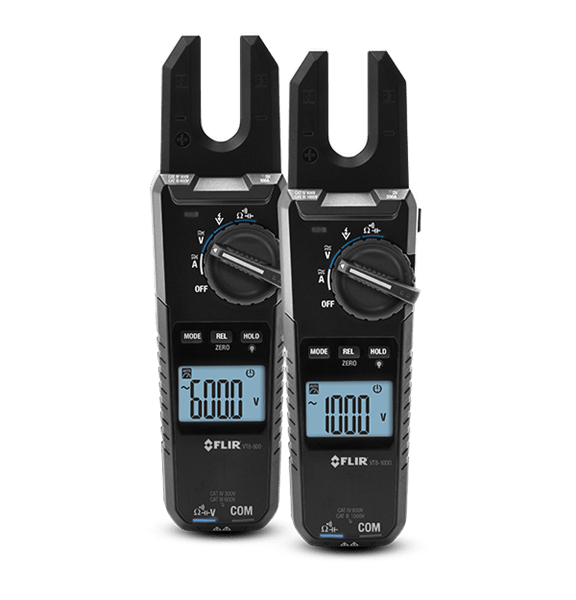

Description Spec Sheets   The FLIR VT8-Series are high-quality voltage, continuity, and current testers. They feature an optimized, open-jaw design that can fit into tight spaces and reliably measure large-diameter cables. The VT8-600 carries a CAT III-600 V/CAT IV-300 V safety rating and a 100 A/600 V measuring range, while the VT8-1000 carries a CAT III-1000 V/CAT IV-600 V safety rating and a 200 A/1000 V measuring range. Extensive measurement features make the VT8-Series versatile tools – just one meter can get the job done. Non_Contact Voltage Detector [NCV] - >100 Vrms; <10 mm distance (LED/buzzer alerts) Drop test - 2 m (6.6 ft) Warranty Limited 3-year MEASUREMENT & ANALYSIS AC/DC Current Accuracy - ±2.5% (50 to 60Hz) AC/DC Current Range - 200 A AC/DC Current Resolution - 0.1 A AC/DC Voltage Resolution - 0.1 V AC/DC Volts Accuracy - ±1.5%, ±1.0% (56 to 66 Hz) AC/DC Volts Range - 1000 V Additional Measurement Functions - DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold Auto Range - Yes Capacitance - 600 µF ±4.0%, 6000 µF ±10.0% Continuity check threshold - 10 Ω to 100 Ω Display Rate - Approximately 3 times per second Over-Range Indication - "OL" or "-OL" displayed Polarity - Automatic display of positive and negative polarity Resistance - 60.00 MΩ ± (1.5%) True RMS - Yes USER INTERFACE Display - 6000-count backlit multi-function LCD ENVIRONMENTAL & CERTIFICATIONS Agency Approvals - C-UL-US, CE, RCM Drop test - 2 m (6.6 ft) Operating Temperature -10 to 50°C (14 to 122°F) Relative Humidity - 95% max; 5 to 30°C (41 to 86°F) 75% max; 30 to 40°C (86 to 104°F) 45% max; 40 to 50°C (104 to 122°F) Storage Temperature –30 to 60°C (-22 to 140°F), batteries not installed Warranty Limited 3-year GENERAL Jaw Opening - 15.5 mm (0.61 in) Worklights - White LED POWER Auto Power Off - After 15 minutes Low Battery Indication - Battery symbol is displayed when batteries need changing Non_Contact Voltage Detector [NCV] - >100 Vrms; <10 mm distance (LED/buzzer alerts) Power Source - 2 x AA alkaline batteries FLIR VT8-600 Data Sheet
