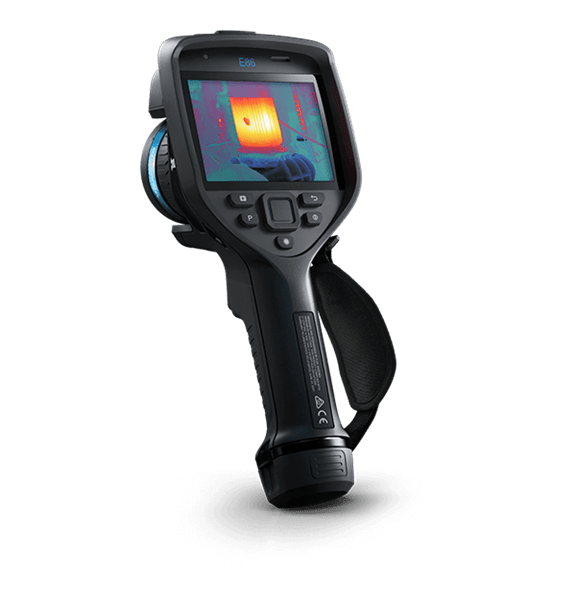

The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView™ dual field-of-view lens you can instantly switch from wide-area to telephoto scanning. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.
LASER DISTANCE MEASUREMENT
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
ONE LENS, TWO FIELDS OF VIEW
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday. (*Optional accessory software)
- IR Resolution - 464 × 348 pixels
- Thermal Sensitivity/NETD - <50 mK at 30°C (86°F)
- Accuracy - ±2°C (±3.6°F) or ±2% of the reading
- Digital Camera - 5 MP, with built-in LED photo/video lamp
- Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media - Removable SD card
IMAGING & OPTICAL
- Color Palettes - Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch - Uncooled microbolometer, 17 µm
- Digital Camera - 5 MP, with built-in LED photo/video lamp
- Digital Zoom - 1-4× continuous
- f-number - 1.5
- Focus - Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency - 30 Hz
- IR Resolution - 464 × 348 pixels
- Lens Identification - Automatic
- Minimum Focus Distance - 1.0 m
- Non-radiometric IR video streaming - H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture - Resizable and movable
- Radiometric IR video recording - Real-time radiometric recording (.csq)
- Radiometric IR video streaming - Yes, over UVC
- Spectral Range - 7.5-14 µm
- Thermal Sensitivity/NETD - <40 mK at 30°C (86°F)
- UltraMax - Yes
- Viewfinder - No
MEASUREMENT & ANALYSIS
- Accuracy - ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets - No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range - -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
- Spot Meter - 3 ea. in live mode
USER INTERFACE
- Display - 4", 640 × 480 pixel touchscreen LCD with auto-rotation
- Text - Predefined list or touchscreen keyboard
- Voice - 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
POWER
- Battery operating time - >2.5 hours at 25°C (68°F) and typical use
- Battery Type - Rechargeable Li-ion battery
ENVIRONMENTAL & CERTIFICATIONS
- Operating Temperature Range - -15 to 50°C (5 to 122°F)
- Safety - EN/UL/CSA/PSE 60950-1
- Storage Temperature Range - -40 to 70°C (-40 to 158°F)
GENERAL
- FLIR Inspection Route - Enabled in camera
- Laser Pointer - Yes
- Packaging - Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
|
|
|
 |
|
 |
|
