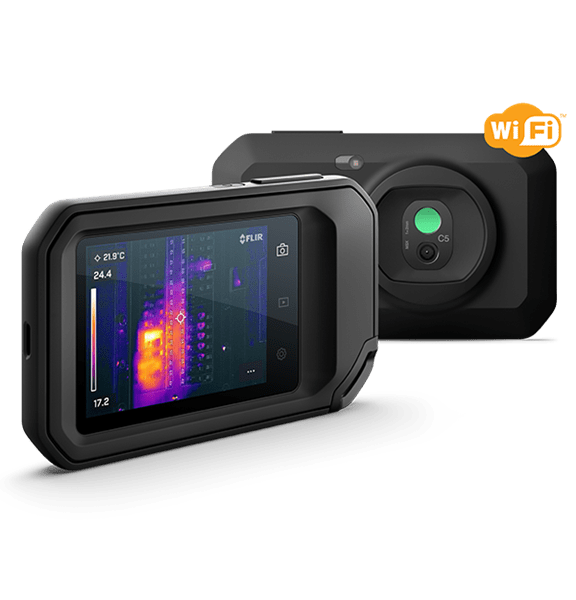

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
FIND AND TROUBLESHOOTQuickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span DOCUMENT AND SHARE
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
RUGGED, RELIABLE, COMPACT
Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
- Accuracy - At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
- Digital Camera - 5 MP
- Image Modes - Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Storage Media - Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
IMAGING & OPTICAL - Color Palettes - Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Digital Camera - 5 MP
- FLIR Screen-EST Mode - No
- Focus - Focus free
- Gallery - Thumbnails and custom folder structure
- Image Frequency - 8.7 Hz
- Image Modes - Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Minimum Focus Distance - Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
- Spectral Range - 8 to 14 µm
MEASUREMENT & ANALYSIS - Accuracy - At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
- Camera size (L x W x H) - 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
- Measurements correction - Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
- Object Temperature Range - -20 to 400°C (-4 to 752°F)
- Thermal Sensitivity - <70 mK
USER INTERFACE - Touchscreen - Capacitive touch
POWER - Battery operating time - 4 hours
- Battery Type - Rechargeable built-in Lithium ion battery
- Charging system - USB-C (1 A)
- Charging Time - 2 hours
- External Power Operation - 5 V, USB-C
ENVIRONMENTAL & CERTIFICATIONS - Drop test - 2 m (6.6 ft)
- Encapsulation - Camera housing and lens: IP54 (IEC 60529)
- Operating Temperature Range - -10 to 50°C (14 to 122°F)
- Storage Temperature Range - -40 to 70°C (-40 to 158°F)
- Tripod Mounting - UNC ¼"-20 (built-in)
|
|
|
 |
|
 |
|
