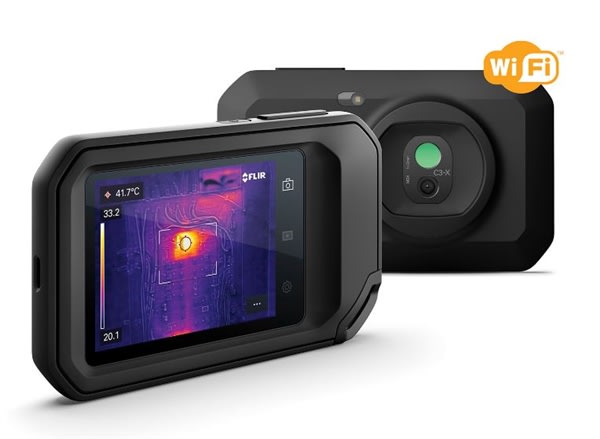

The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
IDENTIFY AND TROUBLESHOOTQuickly find hidden faults and reduce diagnostic time with MSX and 128 × 96 true thermal imaging.
DOCUMENT AND SHARE
Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers.
RUGGED, RELIABLE, COMPACT
Take the pocket-portable C3-X with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop.
- IR Resolution - 128 × 96 pixels
- Thermal Sensitivity/NETD - <70 mK
- Accuracy - 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
- Field of view (FOV) - 53.6°
- Digital Camera - 5 MP resolution
- Image Modes - Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Storage Media - Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
IMAGING & OPTICAL - Auto orientation - Yes
- Camera software update - Automatic over Wi-Fi, USB via computer
- Color - Black
- Color Palettes - Iron, Gray, Rainbow, Rainbow HC
- Detector Pitch - 12 µm
- Detector Type - Focal plane array, uncooled microbolometer
- Digital Camera - 5 MP resolution
- Digital Camera FOV - 71.5° × 56° (84° diagonal)
- Digital Zoom - No
- Display resolution - 640 × 480 pixels
- Field of view (FOV) - 53.6°
- f-number - 1.1
- Focus - Focus free
- Gallery - Thumbnails and custom folder structure
- Image Frequency - 8.7 Hz
- Image Modes - Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- IR Resolution - 128 × 96 pixels
- Minimum Focus Distance - Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft)
- Spatial resolution (IFOV) - 7.9 mrad/pixel
- Spectral Range - 8 to 14 µm
- Thermal Sensitivity/NETD - <70 mK
- Video Lamp - Yes
MEASUREMENT & ANALYSIS - Accuracy - 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
- Camera size (L x W x H) - 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
- Measurements correction - Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
- Object Temperature Range - -20 to 300°C (-4 to 572°F)
- Set-up Commands - Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low)
USER INTERFACE - Display Technology - IPS
- Languages - Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
- Text - Soft keyboard on touchscreen
- Touchscreen - Capacitive touch
POWER - Battery capacity - 1800 mAh
- Battery charge life - >500 cycles
- Battery operating time - 4 hours
- Battery Type - Rechargeable built-in Lithium ion battery
- Battery voltage - 3.7 V
- Battery weight - 40 g (1.4 oz)
- Charging system - USB-C (1 A)
- Charging Temperature - 35°C (95°F)
- Charging Time - 2 hours
- External Power Operation - 5 V, USB-C
- Power Management - Adjustable stand-by and automatic shut-down
ENVIRONMENTAL & CERTIFICATIONS - Drop test - 2 m (6.56 ft)
- EMC - EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B
- Encapsulation - Camera housing and lens: IP54 rated (IEC 60529)
- Humidity (Operating and Storage) - IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles
- Magnetic fields - EN 61000-4-8 level 5
- Operating Temperature Range - -10 to 50°C (14 to 122°F)
- Radio Spectrum - ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2
- Relative Humidity - 95% relative humidity 25 to 40°C (77 to 104°F) non-condensing
- Safety - EN 62368-1
- Shock - 25 g (IEC 60068-2-27)
- Storage Temperature Range - -40 to 70°C (-40 to 158°F)
- Tripod Mounting - UNC ¼"-20 (built-in)
- Vibration - 2 g (IEC 60068-2-6)
- Warranty - http://www.flir.com/warranty/
GENERAL - Housing material - PC and ABS, partially covered with TPE; aluminum
- Packaging Size - 160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)
- Packaging Weight - 0.52 kg (1.14 lb)
- Size (L x W x H) - 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
|
|
|
 |
|
 |
|
