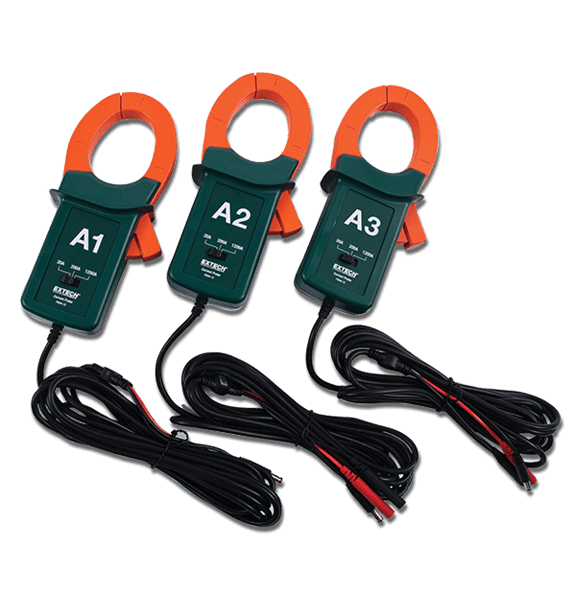

The Extech PQ34-12 is a set of 1200 Amp Current Clamp Probes. For use with the PQ3450 and PQ3470 analyzers. Featuring a 50 mm (2 in) jaw size, this product comes with three current clamp probes and a year warranty.

GENERAL SPECIFICATIONS

• AC Current - 20A, 200A and 1200A, switch selectable
• AC Current Basic Accuracy - ±1% full scale (50/60Hz)
• Cable Length - 4 meters (13.17 feet)
• Frequency Bandwidth - 45 to 400 Hz.
• Jaw Size - 50 mm (2.0 inch)
• Minimum Load - 100 KΩ for specified accuracy
• Output Coupling - AC coupled.
• Output Sensitivity - 10mV/A (20A range), 1mV/A (200A range), 0.1mV/A (1200A range)
• Phase Error - < ±1° (50/60Hz)

ADDITIONAL DETAILS

• Dimensions - 8.3 × 2.5 × 1.3" (210 × 64 × 33 mm)
• Power - 8V ±1V (supplied from meter)
• Safety Category - CATIII - 600V
• Warranty 2 years
• Weight - 490 g (1.08 LB)
