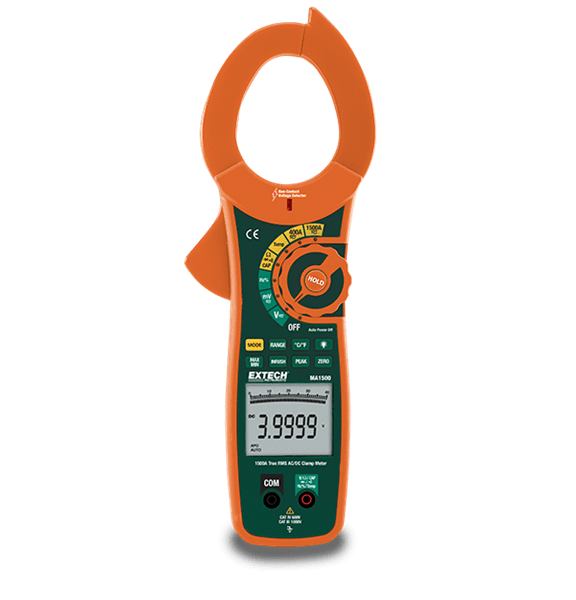

The EXTECH MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include: Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.
GENERAL SPECIFICATIONS
- AC Current - 400.00A, 1500.0A
- AC Current Basic Accuracy - ±(2.8% of reading + 30 digits)
- AC Current Max Resolution - 0.01A
- AC Voltage - 400.00mV, 4.000V, 40.00V, 750.0V
- AC Voltage Basic Accuracy - ±(1.0% of reading + 30 digits)
- AC Voltage Max Resolution - 0.01mV
- Capacitance - 400.00nF, 4000nF, 40.00µF, 400.0µF, 4.000mF, 20.00mF, 40.00mF
- Capacitance Max Resolution - 0.01nF
- Continuity - Yes
- DC Current - 400.00A, 1500.0A
- DC Current Basic Accuracy - ±(2.5% of reading + 30 digits)
- DC Current Max Resolution - 0.01A
- DC Voltage - 400.00mV, 4.0000V, 40.000V, 1000.0V
- DC Voltage Basic Accuracy - ±(0.1% of reading + 4 digits)
- DC Voltage Max Resolution - 0.01mV
- Diode Test - Yes
- Frequency - 40Hz to 40MHz
- Frequency Basic Accuracy - ±(0.3% of reading + 2 digits)
- Frequency Max Resolution - 0.001Hz
- Jaw Size - 2.0" (52mm), conductors up to 500MCM
- Resistance - 400.00Ω, 4.0000kΩ, 40.000kΩ, 400.00kΩ, 4.0000ΜΩ, 40.000MΩ
- Resistance Max Resolution - 0.01Ω
- Temperature (Type K) Max Resolution -148 to 1832°F (-100 to 1000°C)
- Temperature (Type N) ±(1% of reading + 4.5°F/2.5°C)
- Temperature (Type N) Basic Accuracy 0.1°F/°C
- True RMS - Yes
ADDITIONAL DETAILS
- Certifications - CE
- Dimensions - 11.6 × 4.1 × 1.9" (294 × 105 × 47mm)
- Display - 40000/4000-count segment LCD with bargraph and backlighting
- Power - 1 × 9V battery
- Safety Category - CATIV - 600V
- Warranty 2 years
- Weight - 18.9oz (536g)
|
|
|
 |
|
 |
|
