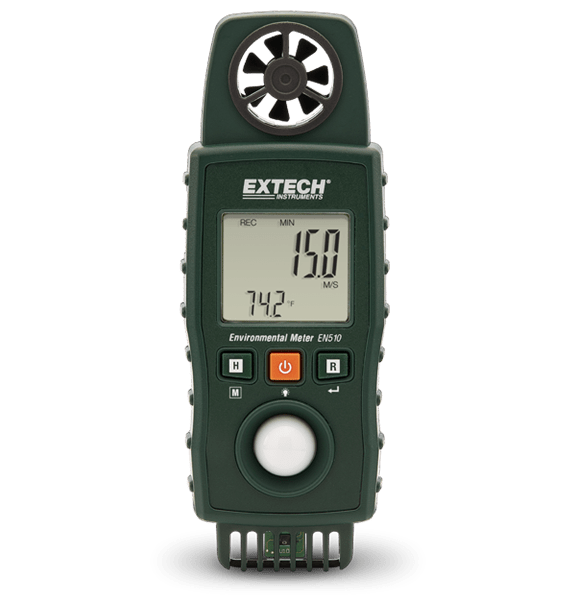

EXTECH EN510 Environmental Meter 10-In-1

EXTECH EN510



List Price: $249.19
Our Price: $173.05
You save $76.14!
Manufacturer: EXTECH


Product Code: WAL3-EN510
Qty:

Description

The convenient Extech EN510 is a 10-in-1 environmental meter that can measure air velocity, air flow, air temperature, Type-K temperature, heat index, and humidity. It also offers wet bulb, dew point, windchill, and light level measurements. The EN510 includes a built-in, replaceable low friction ball bearing mini vane wheel, a precision photo diode with cosine and color correction filter, and a capacitive humidity sensor for high accuracy. The Type-K input accepts standard Type K Thermocouple probes to measure surface temperature up to 1300°C (2372°F). The large dual LCD display is backlit for easy use in dimly lit areas, and auto power off (with disable) helps save the battery from Wallco Inc.

GENERAL SPECIFICATIONS
  • Air Velocity (ft/min) - 80 to 3937 ft/min
  • Air Velocity (ft/min) Basic Accuracy - ±3% full scale
  • Air Velocity (ft/min) Max Resolution - 1ft/min
  • Air Velocity (km/h) - 1.4 to 72km/h
  • Air Velocity (km/h) Basic Accuracy - ±3% full scale
  • Air Velocity (km/h) Max Resolution - 0.1km/h
  • Air Velocity (knots) - 0.8 to 38.8 knots
  • Air Velocity (knots) Basic Accuracy - ±3% full scale
  • Air Velocity (knots) Max Resolution - 0.1knots
  • Air Velocity (m/s) - 0.4 to 20m/s
  • Air Velocity (m/s) Basic Accuracy - ±3% full scale
  • Air Velocity (m/s) Max Resolution - 0.1m/s
  • Air Velocity (mph) - 0.9 to 44.7MPH
  • Air Velocity (mph) Basic Accuracy - ±3% full scale
  • Air Velocity (mph) Max Resolution - 0.1MPH
  • Air Volume (CFM) - 0.847 to 1,271,300
  • Air Volume (CFM) Max Resolution - 0.001CFM
  • Air Volume (CMM) - 0.024 to 36,000
  • Air Volume (CMM) Max Resolution 0.001CMMDew Point - -13.5 to 120.0°F (-25.3 to 49.0°C)
  • Dew Point Max Resolution - 0.1°
  • Heat Index - 32 to 212°F (0 to 100°C)
  • Heat Index Max Resolution - 0.1°
  • Light (Foot Candle) - 0 to 1860 Fc
  • Light (Foot Candle) Basic Accuracy - 0.1Fc
  • Light (Foot Candle) Max Resolution - ±5%
  • Light (Lux) - 0 to 20,000 Lux
  • Light (Lux) Basic Accuracy - 1 Lux
  • Light (Lux) Max Resolution - ±5%
  • Relative Humidity - 10 to 95%
  • Relative Humidity Basic Accuracy - ±0.4%
  • Relative Humidity Max Resolution - 0.1%
  • Temperature (Air) - 32 to 122°F (0 to 50°C)
  • Temperature (Air) Basic Accuracy - ±2.5°F (±1.2°C)
  • Temperature (Air) Max Resolution - 0.1°
  • Temperature (Contact) - -148°F to 2372°F (-100°C to 1300°C)
  • Temperature (Contact) Basic Accuracy - ±(0.4% + 1.8°F); ±(0.4% + 1°C)
  • Temperature (Contact) Max Resolution - 0.1°
  • Wet Bulb - 22.2 to 120°F (-5.4 to 49.0°C)
  • Wet Bulb Max Resolution - 0.1°
  • Windchill - 15 to 112°F (-9.4 to 44.2°C)
  • Windchill Basic Accuracy - ±3.6°F (±2°C)
  • Windchill Max resolution - 0.1°
ADDITIONAL DETAILS
  • Certifications - CE
  • Dimensions - 6.0 × 2.3 × 1" (153 × 58 × 25mm)
  • Power - 3 × AAA (1.5V) batteries
  • Vane - ~1" (27mm)
  • Warranty - 2 years
  • Weight - 5.6oz (160g)
