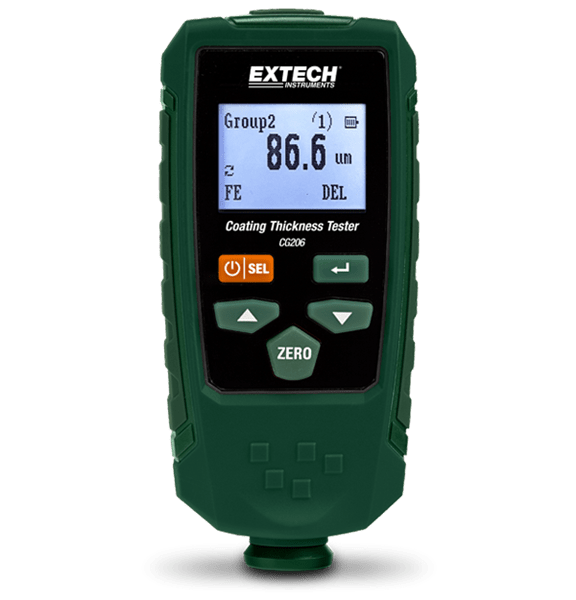

Home > Product Categories > EXTECH CG206 Coating Thickness Tester
	List Price: $374.04 Our Price: $259.75 You save $114.29! Manufacturer: EXTECH Product Code: WAL3-CG206 Qty:

Description Spec Sheets   Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces. GENERAL SPECIFICATIONS Coating Thickness (Ferrous) - 0 to 1350µm (0 to 53mils) Coating Thickness (Ferrous) Basic Accuracy - ±2.5% Coating Thickness (Ferrous) Max Resolution - 0.1µm (0.004mils) Coating Thickness (Non-Ferrous) - 0 to 1350µm (0 to 53mils) Coating Thickness (Non-Ferrous) Basic Accuracy - ±2.5% Coating Thickness (Non-Ferrous) Max Resolution - 0.1µm (0.004mils) Min Curvature Radius (Ferrous) - 1.5mm (59.06mils) Min Curvature Radius (Non-Ferrous) - 3mm (118.1mils) Min Diameter (Ferrous) - 7mm (275.6mils) Min Diameter (Non-Ferrous) - 5mm (196.9mils) Min Thickness (Ferrous) - 0.5mm (19.69mils) Min Thickness (Non-Ferrous) - 0.3mm (11.81mils) Working Principle (Ferrous) - Magnetic Induction Working Principle (Non-Ferrous) - Eddy Current ADDITIONAL DETAILS Certifications - CE Dimensions - 4.5 × 2.1 × 1.1" (113.5 × 54 × 27mm) Power - 2 × AAA (1.5V) batteries Warranty - 2 years Weight - 3.9oz (110g) EXTECH CG206 Data Sheet EXTECH CG206 User Manual
