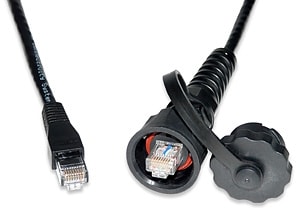

Signamax C6AS-117IG-10FB-S Cat6A Screened Industrial Plug to RJ45 Plug, 10 Feet

Product Overview

Cat6A Screened Industrial Plug to RJ45 Plug, 10 Feet. It is part of the Signamax Connectivity offering and is intended for installations where the exact part number and configuration must be matched to the application.

Applications

Use this product in compatible structured cabling, networking, fiber, rack, enclosure or connectivity applications as specified by Signamax for this model and family.

Key Product Information

• Manufacturer: Signamax
• Part Number: C6AS-117IG-10FB-S
• Family: Connectivity
• Category: Industrial - Patch Cords

Selection Notes

Confirm the exact Signamax part number, interface, performance level, dimensions and compatibility required for your installation. Where technical documentation is provided on this page, use the manufacturer specification sheet as the authoritative source for detailed ratings and configuration.

TRANSMISSIONPERFORMANCE

• ANSI/TIA-568-C.2: category 6A (1-500 MHz) specifications
• ANSI/TIA-568-C.2: category 6 (1-250 MHz) specifications (100% tested)

WIRING SCHEME

• ANSI/TIA-568-C.2: T568A & T568B
• ISO/IEC 11801 2nd Ed.: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)

CORD CONSTRUCTION

• – 4 stranded 26-AWG copper pairs in thermoplastic insulation, High-Density Polyethylene outer jacket
• – high-impact clear polycarbonate 8p8c plugs
• – IP67-rated industrial-grade thermoplastic plug housings
• – thermoplastic boots
• – thermoplastic strain relief

PLUG

• Contacts: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
• Insulation resistance: min 500 MOhm @ 100 Vdc
• Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
• Contact resistance: max 20 mOhm
• Current rating: see figure
• Assembly: FCC Part 68 Subpart F
• Housing: UL listed 94V-0 flame retardant polycarbonate
• Retention: 50 N (11 lbf) for 60±5 s
• Mating cycle life: min 750 cycles
• Tensile strength: ≥ 20 N per wire

INDUSTRIAL PLUGHOUSING

• – industrial-grade high-impact flame-retardant thermoplastic
• – UL 94V-0 rated
• – IP67 rated (complete protection against dust, protection against the effects of temporary immersion up to 1 m (3 ft))

CABLE

CONDUCTOR:

• Material bare copper
• Size 26 AWG stranded (7 x 34 AWG strands per conductor)

INSULATION:

Color coding:

• blue/white-blue
• orange/white-orange
• green/white-green
• brown/white-brown

SHEATH:

• Diameter: < 5.58 mm (0.22 ± 0.01 in)
• Color: Black
• Tensile strength: > 400 N (90 lbf)
• Min. bend radius: 25 mm (1 in) recommended

SHIELDS:

Overall sheild of 38AWG tinned copper braid. Aluminized polyester foil shield

ENVIRONMENTALCONDITIONS

• Storage: -40 °C – +70 °C (-40 °F – +158 °F)
• Operation: -40 °C – +75 °C (-40 °F – +167 °F)
• RH (operation): max non-condensing 93 %

COMPLIANCE

ANSI/TIA-568-C.2, IEC60603-7, IEC 61156-6, IEC 60332-1-2, FCC Part 68 Subpart F, UL 94V-0, RoSH

APPLICATIONS

X.21, V.11, S0, ISDN,CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T (upto 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

WARRANTY

• 5-year limited component warranty
• 10-year Signamax Link/Channel Warranty
• 15-year Signamax Extended Component Warranty
• 25-year Signamax Cabling System Warranty
