AtlasIED PD-5VH 40-Watt 16O Compression Driver for Large Format Horn Speakers

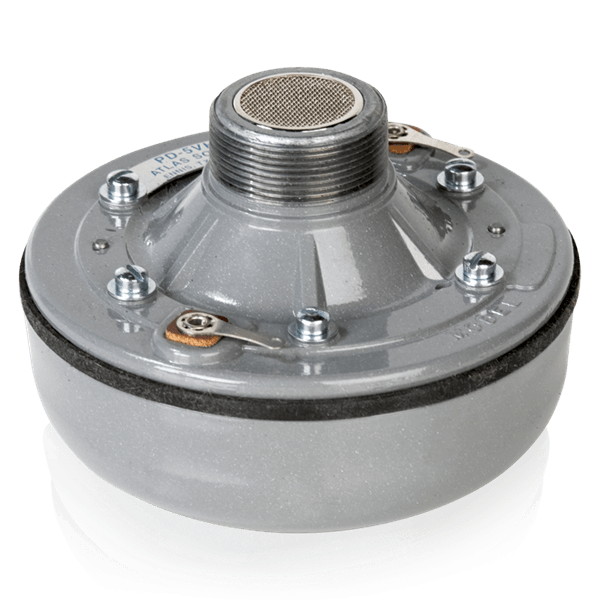

AtlasIED PD-5VH
AtlasIED PD-5VH

List Price: $233.99
Our Price: $188.99
You save $45.00!
Manufacturer: AtlasIED


Product Code: WAL07-PD-5VH
Qty:

Description

Model PD-5VH is a 40-watt driver with 2" voice coil machined to optimum tolerances.

Model PD-5VH has an Alnico V-DG magnet which offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. It also provides terminals for matching direct to the 16 ohm voice coil. PD-5VH offers a plane wave frequency response of 110Hz - 4.1kHz.

The durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread.

Units are finished in grey, baked epoxy.

FEATURES
  • 40-Watt Power Rating
  • Environment-Resistant Construction for Indoor/Outdoor Use
  • Extended Frequency Response Range for Optimum Intelligibility
  • Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction

SPECIFICATIONS
Frequency Response - 110Hz - 4.1kHz
Sensitivity - 110.7 (avg) 110 - 4,100Hz
Power Rating - 40W
Height - 5 1/8" (13.02 cm)
Width - 4 3/8" (11.11 cm)
Shipping Weight - 5.00 lbs (2.27 kgs)
