AtlasIED HD72W 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle
AtlasIED HD72W
AtlasIED HD72W

List Price: $56.99
Our Price: $47.99
You save $9.00!
Manufacturer: AtlasIED


Product Code: WAL07-HD72W
Qty:

Description

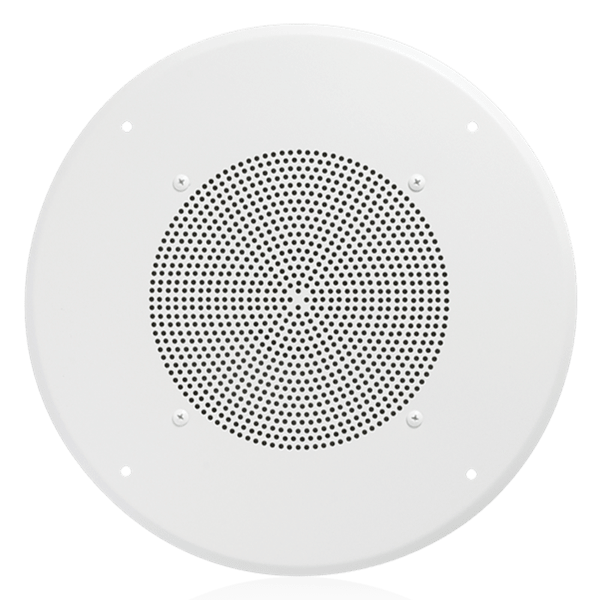

Model HD72W is a cost effective assembly that include high-quality 8" speaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.

The HD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz - 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.

FEATURES
  • Attractive White Finish
  • Easy to Order Speaker/Transformer/Grill Assembly
  • Suited for Any Commercial Paging or BGM Application

SPECIFICATIONS
Speaker Type - Treated Paper
Sensitivity - 97dB Peak, 94dB Average
Frequency Response - 100Hz - 10kHz
Power Taps - .25, .5, 1, 2, & 4 Watts
Dispersion - 105°
Depth - 2 7/8" (7.3025 cm)
Diameter - 8" (20.32 cm)
Shipping Weight - 4.50 lbs (2.04 kgs)
