Must Purchase In Multiples of 2

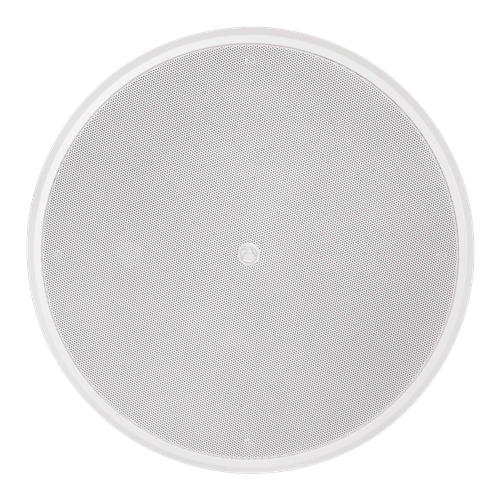

The AtlasIED FAP63TC-W Strategy III is a 6.5" coaxial speaker designed for applications where shallow mounting depth is required. If you require an in-ceiling speaker with excellent speech intelligibility, crisp music reproduction, and wide audience coverage, look no further. AtlasIED achieved these new standards by building upon the current Strategy Series excellent reputation and by extensive market research to make it even better. The results are outstanding and will have you choosing them for all your projects going forward.

Retail stores, restaurants, recreational facilities, and even hotels, convention centers, and casinos have all changed their thinking on how an in-ceiling speaker should perform. For many years, good enough was a speaker that just played dull and lifeless sound. In today's world, good enough is no longer accepted because building owners want to increase their customer's experience by providing them the best of everything - including superb sound. The improved waveguide design provides wider coverage than previous models. The benefit is cost savings due to fewer speakers required, while still maintaining uniform sound throughout. Additionally, the FAP63TC-W is safety listed to both UL1480 and UL2043.

A front mounted 70V tap selector allows installers to quickly adjust and set the 70V power taps. A removable 4-pole euro-style connector allows for easy pre-wiring and daisy chaining of additional speakers and subwoofers. The FAP63TC-W has a mounting depth of only 3.81" (9.68cm) that make it ideal for a variety of installations where building structure or infrastructure prevent the use of a standard depth speaker package.

FEATURES

• The FAP63TC-TR can be used for preconstruction installations.
• Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss
• Increased Dispersion with Improved Waveguide
• Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for Direct Coupled Operation
• 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining of Additional Speakers
• "Press Fit" Grilles Blend Better into Contemporary Architecture
• Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit

SPECIFICATIONS

Speaker Type - Coaxial

Sensitivity - 90dB (1W/1m)

Power Taps - 4, 8, 16, 32 Watts & 8Ω

8Ω RMS Power - 75-Watts Continuous / 150-Watts Program

Frequency Response - 80Hz - 20kHz

Dispersion - 110°

Certified To Safety Listing - UL1480a & UL2043
