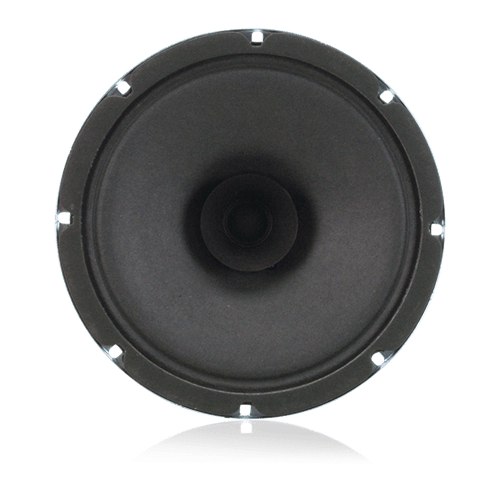

Model C10AT70 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 70V 5W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A speakers are TEF-tested at the factory.
FEATURES
- Acoustically Proven, General Purpose 25-Watt Loudspeaker
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Includes LT-70 Factory-Installed Line-Matching Transformer
- Mounts a Wide Selection of Atlas Sound Baffles
- Offers U.S.- Made Quality at a Realistic Price
SPECIFICATIONS
Speaker Type - Treated Paper
Sensitivity - 97dB Peak, 94dB Average
Frequency Response - 100Hz - 10kHz
Power Taps - .5, 1, 2, & 5 Watts
Dispersion - 105°
Depth - 2 7/8" (7.3025 cm)
Diameter - 8" (20.32 cm)
Shipping Weight - 3.00 lbs (1.36 kgs)
