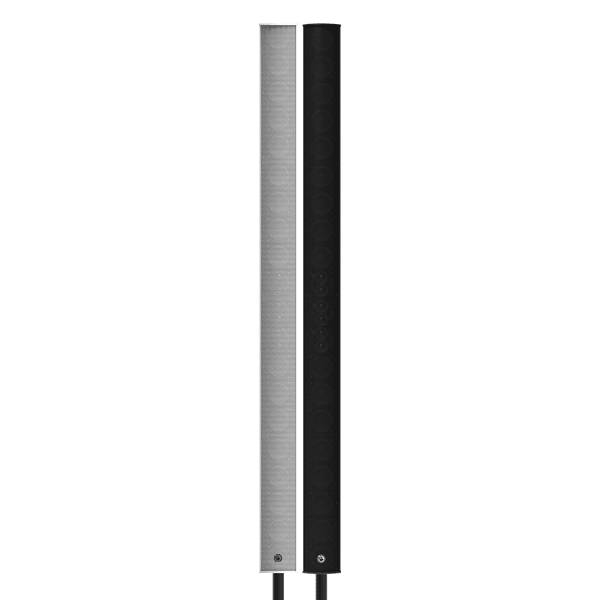

AtlasIED ALA20T-B 20 Speaker Full Range Line Array Speaker System - Black
AtlasIED ALA20T-B
AtlasIED ALA20T-B

Alternative Views:
List Price: $1,119.99
Our Price: $896.99
You save $223.00!
Manufacturer: AtlasIED


Product Code: WAL07-ALA20T-B
Qty:

Description

The ALA20T-B column line array speaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T-B's transducer configuration combines twenty tight packed 3" full range drivers and six 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with our A-Line subwoofer.

Note: Pole and pole mount bracket sold separately.

FEATURES
  • 45° Vertical Coverage
  • 135° Horizontal Coverage
  • Twenty (20) Proprietary 3" (76mm) Full Range Drivers
  • Barrier Strip and NL-4 Terminals
  • Barrier Strip and NL-4 Terminals
  • Lightweight Aluminum Housing
  • Wall Mount Bracket Included

SPECIFICATIONS
8Ω RMS Power - 500 Watts
70.7V Power Taps - 7.5, 15, 30, & 60 Watts
Dispersion - 135° H & 40° V
Sensitivity - 97dB 1W/1m
Frequency Response - 110Hz - 20kHz
Height - 65.75" (1670mm)
Depth - 5.43" (137.9mm)
Width - 4.61" (117mm)
