ACME CE500N006CF2 ICT .500KVA 208,277 - 120 F2

CE SERIES INDUSTRIAL CONTROL TRANSFORMERS FOR GLOBAL APPLICATIONS
The Acme Electric CE Series Industrial Control Transformers are designed specifically for machine tool control circuit applications. These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage. Designed to meet or exceed the demands of international standards, combined with the full breadth of product offering, the CE Series Transformers from Acme Electric are the ideal solution for your industrial control applications. Acme’s CE Series Encapsulated Industrial Control Transformers carry the CE mark, indicating it complies with the requirements established by the International Electro technical Commission (IEC) for use of control circuit transformers in the countries of the European Union. Regulations that apply to control transformers include Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility (EMC) Directive 2004/108/EC

Cooler. Cleaner. More Compact.
The CE Series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation. In addition, the CE Series industrial control transformers seal the transformer’s windings and internal terminations within an encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Furthermore, Acme’s compact design helps minimize the mounting footprint, providing more flexibility in applications where space is at a premium.

Features

• 50 -5000 VA, 50/60 Hz
• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Integrally molded terminal blocks with isolation barriers to prevent arc over
• Terminal blocks allow full access for ring terminals for easy installation and solid termination
• Heavy gauge steel mounting feet
• UL and cUL Listed
• Twenty-year limited Warranty

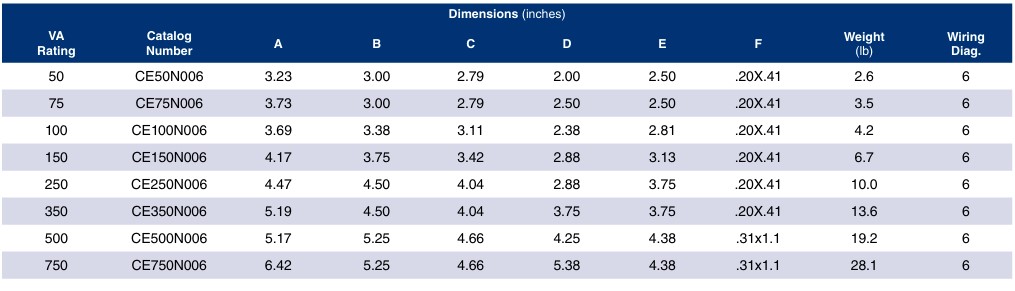

CE SERIES
Group P

• 208, 277 PRIMARY VOLTS — 120 SECONDARY VOLTS — 1Ø 50/60 Hz
