ACME A3045K0310B Buck Boost TFMR 3PH 45KVA 240-208

ACME THREE PHASE BUCK-BOOST
Buck Boost transformers are the ideal solution anytime a line voltage change in the 5-15% range is required in single phase or three phase applications.

Until now, three phase applications required multiple separate single phase Buck Boost Transformers to be wired and mounted together. Acme Electric’s NEW 3 Phase Auto Buck Boost Transformers remove the need for multiple separate units and provide the same great electrical advantages standard Buck Boost Transformers offer in one simple and convenient package.

Acme Electric’s NEW 3 Phase Auto Buck Boost Transformers are the best economical solutions available for three phase applications, requiring only one transformer and reducing the overall footprint. Additionally, the transformers are assembled and prewired at the factory, a considerable time and installation cost savings.

Acme Electric’s NEW 3 Phase Auto Buck Boost Transformers are UL Listed with a 10 year warranty and are currently being offered in Type 3R enclosures.

Features

• Copper terminations for trouble free operation
• Lower cost solution
• 5-10 times increase in kVA

General
Catalog Number - A3045K0310B
Construction - Encapsulated
Max Temperature Rise - 115 Degrees Celsius
Mounting Type - Wall
Primary Voltage - 220/230/240
Secondary Voltage - 208 V
UL Insulation Class - 180 Degrees Celsius
UPC - 047503092415
Winding Material - AL
kVA - 45

Dimensions
Dimensions - 7.37 in x 19.25 in x 15.21 in
Height - 7.37 in
Length - 15.21 in
Weight - 156 lb
Width - 19.25 in

Electrical Ratings
Frequency Rating - 60 Hz
Primary Voltage - 240 V

Certifications And Compliance
CSA Standard - C22.2 No 47
Nema Rating - NEMA 3R
UL Standard - UL 506

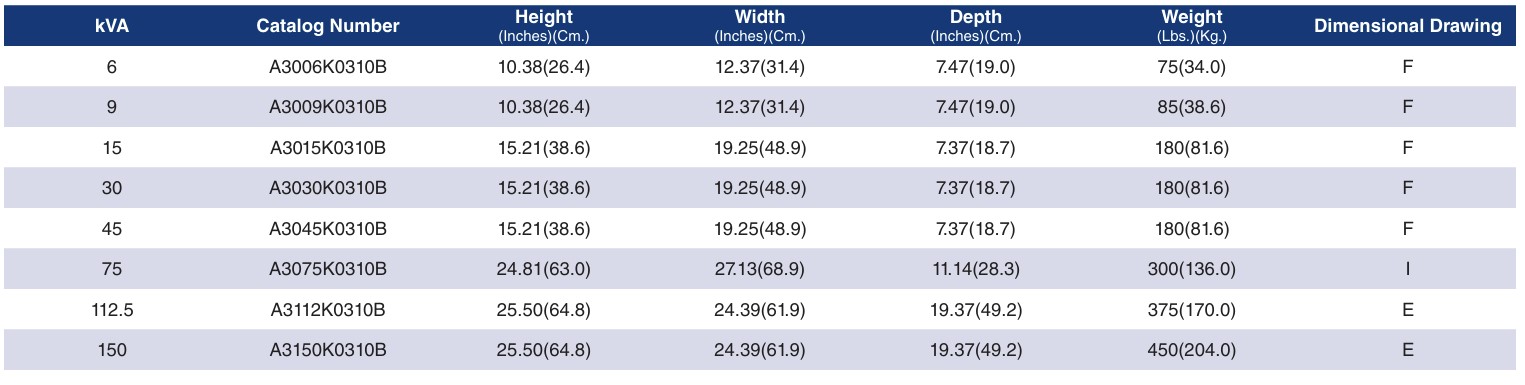

Three Phase Selection Table - 240 PRIMARY VOLTS — 208 SECONDARY VOLTS
