Signamax EC30100

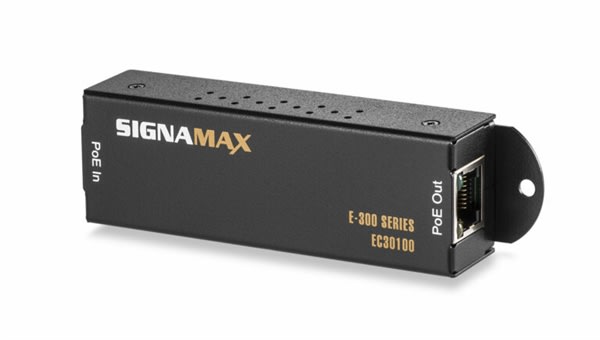

Signamax EC30100 E-300 Ethernet and PoE Extender

List Price: $243.56

$

Manufacturer:: Signamax

Product Code: Wal61-EC30100

UPC Code: 763474183371

Qty:

Support 10/100/1000 data rates
802.3af and 802.3at compatibl
Provide up to 25W to the powered devic
Daisy chain up to 5 extender
Zero touch Plug and Play connectivit
No AC power require
5 year hardware warranty & support at no additional cost

PORTS

2 – RJ45

PERFORMANCE

Supports 10K Jumbo Frames
Wirespeed Forwarding

LAYER 2

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3 Auto-Negotiation

IEEE 802.3ab 1000BaseT

IEEE 802.3x Flow Control

PoE: Support IEEE 802.3af/IEEE802.3at

ELECTRICAL CHARACTERISTICS
Powered: Po
Power Consumption: 2W Max

PHYSICAL CHARACTERISTICS

Dimensions: 0.79 x 1.26 x 4.84 in (2 x 3.2 x 12.3 cm)
Weight: 0.23 lb (0.11 kg
Housing: IP3
Mounting: Wall mountable (included)

ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 23 to 122°F (-5 to 50°C)
Storage Temperature: -40 to 185°F (-40 to 85°C
Operating/Storage Humidity: 5 to 95% (non-condensing)

CERTIFICATIONS

EMC: CE mark, FCC Part 15 Class A; VCCI Class A
Safety: CE/LVD EN60950-1

WARRANTY
Five years (Including power supply)

Signamax EC30100 Spec Sheet

Signamax EC30100 Quick Start Guide
