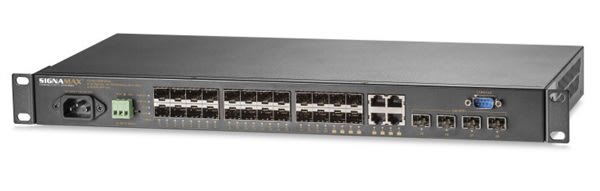

The Signamax 24-port Managed Layer 2+ SFP Ethernet Switch provides non-blocking performance for 24 100/1000Base SFP port connections, 4 of which are shared as Dual Media 10/100/1000BaseT/TX ports, plus 4-1000Base/10GB SFP+ only ports, for a total of 28 ports. The 24 SFP slots use auto-detected SFP modules for fiber optic switch interconnection at extended distances. Both ring and star Gigabit backbone network architectures are possible with full automatic failover.

The included SNMP management package is complete and comprehensive with real time updating. It communicates with network management systems such as HP OpenView™ via SNMP for enterprise-wide status display, statistical monitoring, and switch control. Enhanced Layer 2+ features, make the Signamax 24-port Managed SFP Switch an excellent foundation for establishing or adding to a fiber-based enterprise network.

• Dual speed SFP+ ports for 10 Gigabit Ethernet or Gigabit Ethernet fiber connectivity
• Dual speed SFP ports for fast Ethernet or Gigabit Ethernet fiber connectivity
• Bandwidth rate control via port-policer
• IEEE 802.3az Energy Efficient Ethernet standard supported
• IPv6 and s-Flow support
• Dual power capability supports simultaneous AC/DC switch powering
• IEEE 802.1AB Link Layer Discovery Protocol and Media Endpoint Discovery standard supported
• Supports RSTP/MSTP/STP for Ethernet redundancy
• Supports port-based VLAN and IEEE 802.1Q VLAN Tagging and GVRP
• IP multicast filtering through IGMP snooping V1, V2 & V3
• IEEE 802.1p QoS with eight priority queues
• IPv6 and IPv4 static routing supported
• IEEE 802.3 ad Link Aggregation Control Protocol standard supported
• RS-232 console, Telnet, SNMP v1, v2c & v3, RMON, SSL/SSH, HTTP (web browser), and TFTP Management
• Supports command line interface in RS-232 console
• IEEE 802.1x Port-Based Network Access Control with RADIUS supported
• Per-port programmable MAC address locking
• Static secure MAC addresses supported
• Port mirroring, both inbound and outbound
• Supports Network Time Protocol (NTP)
