Moujen MEA-9111 Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9111G Mini Light Limit Switch 6A 250V AC
|

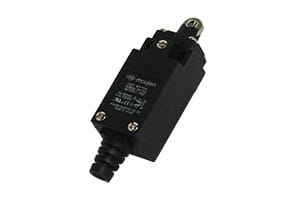

Moujen MEA-9112 Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
|
|
|
|

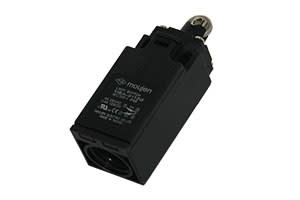

Moujen MEA-9112G Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9122 Mini Light Limit Switch 6A 250V AC
|
MEA - CHARACTERISTICS
|
Rating |
- 6A at 125 or 250V AC
- 0.4A at 125V DC
|
Operating speed |
|
Operating frequency |
- Mechanically: 120 operations/min.
- Electrically: 30 operations/min.
|
Contact resistance |
|
Insulation resistance |
|
Dielectric strength |
- 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
- 1,500 VAC, 50/60 Hz for 1 minute between each terminal and non-current carrying metal part and between each terminal and ground
|
Vibration |
- Malfunction durability: 10 to 55Hz 1.5mm double amplitude
|
Shock |
- Mechanical durability: Approx 1,000m/sec (approx 100G's)
- Malfunction durability: Approx. 300m/sec (approx 30G's)
|
Ambient operating temperature |
- General purpose type: -15º to +70º C
|
Humidity |
|
Service life |
- Mechanically: 10,000,000 operations min
- Electrically: 500,000 operations min.
|
Degree of protection |
|
FEATURES |
- Total plastic enclosure, light weight switches
- Wide choice of heads and actuators
- Captive cover screws
- Mode of operation is filed adjustable
|
- Dust proof, Oil-Tight, Water-Resistant
- 2 circuits: 1 N.O. 1 N.C. contacts design
- Temperature range +5º F to +160º F
- Temperature range -15º C to 70º C
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Moujen MEA-9161 Mini Light Limit Switch 6A 250V AC
|

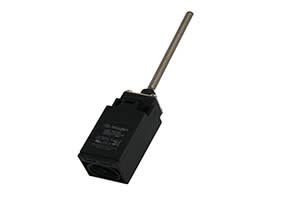

Moujen MEA-9161G Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9166 Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
|
|
|
|
Moujen MEA-9166G Mini Light Limit Switch 6A 250V AC
|
MEA - CHARACTERISTICS
|
Rating |
- 6A at 125 or 250V AC
- 0.4A at 125V DC
|
Operating speed |
|
Operating frequency |
- Mechanically: 120 operations/min.
- Electrically: 30 operations/min.
|
Contact resistance |
|
Insulation resistance |
|
Dielectric strength |
- 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
- 1,500 VAC, 50/60 Hz for 1 minute between each terminal and non-current carrying metal part and between each terminal and ground
|
Vibration |
- Malfunction durability: 10 to 55Hz 1.5mm double amplitude
|
Shock |
- Mechanical durability: Approx 1,000m/sec (approx 100G's)
- Malfunction durability: Approx. 300m/sec (approx 30G's)
|
Ambient operating temperature |
- General purpose type: -15º to +70º C
|
Humidity |
|
Service life |
- Mechanically: 10,000,000 operations min
- Electrically: 500,000 operations min.
|
Degree of protection |
|
FEATURES |
- Total plastic enclosure, light weight switches
- Wide choice of heads and actuators
- Captive cover screws
- Mode of operation is filed adjustable
|
- Dust proof, Oil-Tight, Water-Resistant
- 2 circuits: 1 N.O. 1 N.C. contacts design
- Temperature range +5º F to +160º F
- Temperature range -15º C to 70º C
|
|
Moujen MEA-9169G Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
|
|
|
|
MEA - CHARACTERISTICS
|
Rating |
- 6A at 125 or 250V AC
- 0.4A at 125V DC
|
Operating speed |
|
Operating frequency |
- Mechanically: 120 operations/min.
- Electrically: 30 operations/min.
|
Contact resistance |
|
Insulation resistance |
|
Dielectric strength |
- 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
- 1,500 VAC, 50/60 Hz for 1 minute between each terminal and non-current carrying metal part and between each terminal and ground
|
Vibration |
- Malfunction durability: 10 to 55Hz 1.5mm double amplitude
|
Shock |
- Mechanical durability: Approx 1,000m/sec (approx 100G's)
- Malfunction durability: Approx. 300m/sec (approx 30G's)
|
Ambient operating temperature |
- General purpose type: -15º to +70º C
|
Humidity |
|
Service life |
- Mechanically: 10,000,000 operations min
- Electrically: 500,000 operations min.
|
Degree of protection |
|
FEATURES |
- Total plastic enclosure, light weight switches
- Wide choice of heads and actuators
- Captive cover screws
- Mode of operation is filed adjustable
|
- Dust proof, Oil-Tight, Water-Resistant
- 2 circuits: 1 N.O. 1 N.C. contacts design
- Temperature range +5º F to +160º F
- Temperature range -15º C to 70º C
|
|
MEA - CHARACTERISTICS
|
Rating |
- 6A at 125 or 250V AC
- 0.4A at 125V DC
|
Operating speed |
|
Operating frequency |
- Mechanically: 120 operations/min.
- Electrically: 30 operations/min.
|
Contact resistance |
|
Insulation resistance |
|
Dielectric strength |
- 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
- 1,500 VAC, 50/60 Hz for 1 minute between each terminal and non-current carrying metal part and between each terminal and ground
|
Vibration |
- Malfunction durability: 10 to 55Hz 1.5mm double amplitude
|
Shock |
- Mechanical durability: Approx 1,000m/sec (approx 100G's)
- Malfunction durability: Approx. 300m/sec (approx 30G's)
|
Ambient operating temperature |
- General purpose type: -15º to +70º C
|
Humidity |
|
Service life |
- Mechanically: 10,000,000 operations min
- Electrically: 500,000 operations min.
|
Degree of protection |
|
FEATURES |
- Total plastic enclosure, light weight switches
- Wide choice of heads and actuators
- Captive cover screws
- Mode of operation is filed adjustable
|
- Dust proof, Oil-Tight, Water-Resistant
- 2 circuits: 1 N.O. 1 N.C. contacts design
- Temperature range +5º F to +160º F
- Temperature range -15º C to 70º C
|
|
Moujen MEA-9104 Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
|
|
|
|

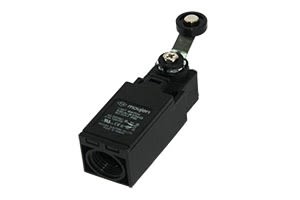

Moujen MEA-9104G Mini Light Limit Switch 6A 250V AC
|

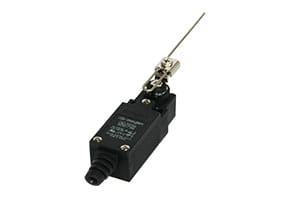

Moujen MEA-9107 Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9107G Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
|
|
|
|

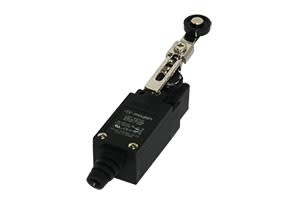

Moujen MEA-9108 Mini Light Limit Switch 6A 250V AC
|

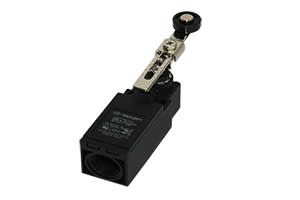

Moujen MEA-9108G Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9104-L Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
|
|
|
|
Moujen MEA-9111-P Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9112-P Mini Light Limit Switch 6A 250V AC
|
Moujen MEA-9122-P Mini Light Limit Switch 6A 250V AC
|
|
|
|
|
|
|
|
|
Moujen MEA-9108-L Mini Light Limit Switch 6A 250V AC
|
|
