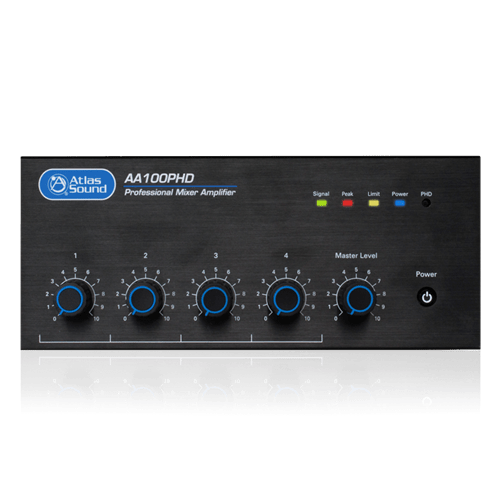

AtlasIED AA100PHD 4-Input, 100-Watt Mixer Amplifier with Automatic System Test (PHD)

AtlasIED
List Price: $898.99
$
You save $!
  • Manufacturer:: AtlasIED
Product Code: WAL07-AA100PHD
FEATURES
  • Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
  • Contact Closure Mute Terminals
  • Variable Mute Sensitivity Control for Input 1
  • Preamp In for External Processors
  • Line Output
  • Remote Input Select (RIS)
  • Remote Level Control
  • Input Assignable Zone 2 Output
  • Two Unbalanced, Summing Line Level Inputs
  • Two Balanced Mic/Line/Tel Inputs w/ Phantom Power
  • Automated Diagnostic System Test (Push Here Diagnostic®)
  • 100W into 25V/70.7V and 4Ω Loads
  • Optional Rack Mount Kit Available, Model AARMK2-5

SPECIFICATIONS
Frequency Response - 50Hz - 15kHz
Connector Type - 4 Position Phoenix 3.5mm Pitch
Power Output - Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 100W RMS
Height - 3.66" (93mm)
Width - 8.27" (210mm)
Depth - 10.87" (276mm)
Weight - 13lb
Shipping Weight - 15.2lb
Voltage Compatibility - 110V - 120V
